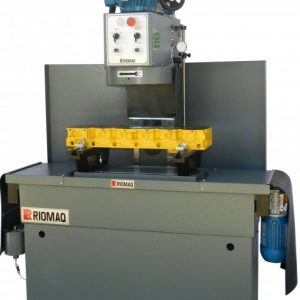

Surface Grinding Mechanical Machine

Milling cutters with interchangeable tools;
Movement of the table mechanical with variable speed electronically;
Faster rate feed of approximation of headstock electrical;
Rotation of spindle variable electronically;
All sliding tabs coated with Slydway;
Structure of iron Nodular GGG-50.
Table surface 450 x 1440 mm
Maximum length for machining 1550 mm
Maximum width for machining 350 mm
Maximum height for machining 620 mm
Variable rotation of headstock 180 – 1500 rpm
Variable speed of the table 80 – 1000 mm/min
Motor of headstock 5 hp
Motor-reducer of rate feed of the table 0,75 hp
Motor of rapid feed of headstock 1 hp
Width 3750 mm
Height 1080 mm
Depth 1040 mm
Weight 1450 Kg
Technical data subject to change without notice.
